| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | SANY |
| ได้รับการรับรอง: | iso/ccc |
| หมายเลขรุ่น: | 956h5 |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ยูนิต |
|---|---|
| ราคา: | สามารถต่อรองได้ |
| รายละเอียดการบรรจุ: | เปลือย |
| เวลาการส่งมอบ: | 30-45 วันทำงาน |
| เงื่อนไขการชำระเงิน: | แอล/C,ที/ที |
| สามารถในการผลิต: | 400 หน่วย/หน่วยต่อเดือน |
| หมายเลขรุ่น: | ซันนี่ 956H5 | โหลดพิกัด: | 5ต |
|---|---|---|---|
| การแพร่เชื้อ: | ไฮดรอลิก | โหลดและยกเลิกการโหลดโหมด: | ปล่อยด้านหน้า |
| โหมดการเดิน: | มีล้อ | พิมพ์: | รถตักดินขนาดเล็ก |
| ความจุถัง: | 3m3 | พลัง: | 164กิโลวัตต์ |
| ขนาด: | 8106*2750*3500มม | ฐานล้อ: | 3300 มม. |

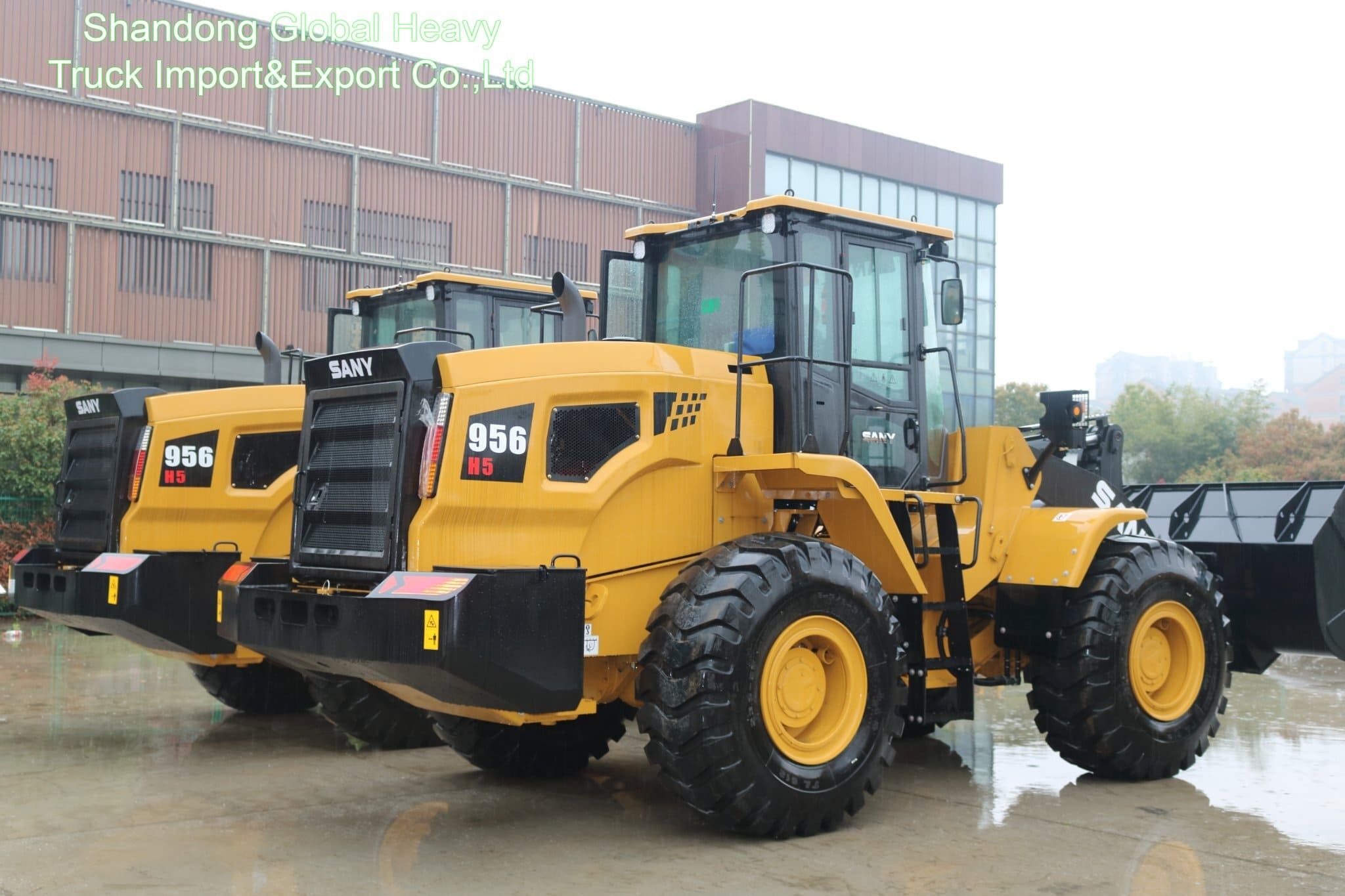

The SANY SYL956H5 is a 5-ton class wheel loader that has earned a reputation for punching above its weight class. Many operators report that this 5-ton machine delivers performance comparable to 6-ton loaders from other brands.
Powered by a high-efficiency diesel engine with 164 kW of rated power, the SYL956H5 combines high breakout force, fast cycle times, and exceptional fuel economy. It is built for demanding applications including mining, quarry operations, construction sites, sand and gravel yards, ports, and bulk material handling.
With a standard bucket capacity of 2.7 - 4.0 m³ and a rated load of 5,000 kg (5 tons), this loader is a true workhorse. Its 6-ton platform frame and heavy-duty oscillating axle provide the structural integrity needed for long service life in harsh conditions.
Made in China — SANY is one of the world's largest construction equipment manufacturers, with a global reputation for innovation, reliability, and value.
| Parameter | Details |
|---|---|
| Model | SANY SYL956H5 |
| Condition | Brand new — in stock |
| Rated Load (Payload) | 5,000 kg (5 tons) |
| Bucket Capacity | 2.7 - 4.0 m³ (standard 3.0 m³) |
| Operating Weight | 17,100 - 17,200 kg |
| Engine Power | 164 kW @ 2,200 rpm (approx. 220 HP) |
| Breakout Force | High — designed for heavy digging |
| Max Dumping Height | 3,118 ± 50 mm |
| Unloading Distance | 1,140 ± 50 mm |
| Max Travel Speed | 40 km/h |
| Turning Radius (outside) | 5,850 mm |
| Overall Length (with bucket) | 8,016 ± 50 mm |
| Overall Height | 3,501 ± 50 mm |
| Wheelbase | 3,200 mm |
| Ground Clearance | 432 ± 10 mm |
| Fuel Tank Capacity | 300 L |
| Hydraulic Tank Capacity | 220 L |
| Emission Standard | Tier 3 / China III (higher standards on request) |
| Warranty | 12 months or 2,000 hours |
