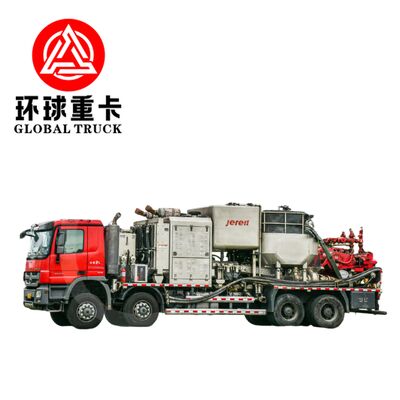

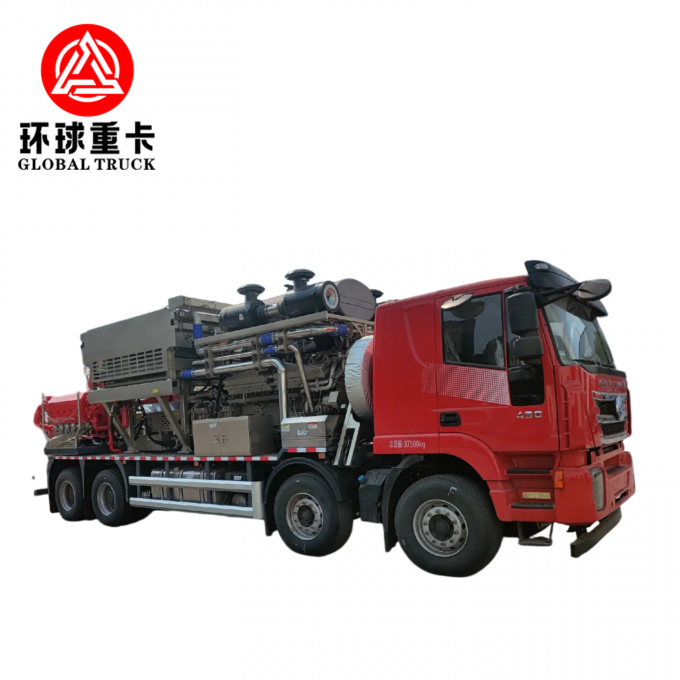

Shacman 8×6 Oilfield Fracturing Mortar Tank Truck
Diesel Engine, Manual Transmission, Euro 6 - New Condition
Product Overview
The Shacman 8×6 Oilfield Fracturing Mortar Tank Truck is a high-performance oilfield vehicle designed for hydraulic fracturing, cementing, and slurry pumping operations in unconventional oil and gas fields. Equipped with a Euro 6 diesel engine, manual transmission, and reinforced 8×6 off-road chassis, this truck combines high payload, precise fluid control, and operational reliability in harsh terrains.
Ideal for shale formations, tight oil reservoirs, and deep horizontal well stimulation.
Chassis & Drive System Specifications
- Drive Layout: 8×6 heavy-duty oilfield chassis
- Engine Power: 460-500 HP, Euro 6 diesel
- Transmission: 10-speed manual gearbox
- PTO: Engine-driven power take-off for hydraulic pump
- Axles: Reinforced oilfield-grade drive axles
- Suspension: Heavy-duty leaf spring with optional hydraulic dampers
- Tires: Oilfield off-road radial
- Maximum Speed: 70-75 km/h
The 8×6 chassis ensures stability, improved traction, and safe operation under full load on muddy, desert, plateau, and mountainous oilfield roads.
Mortar Tank & Fluid Handling
| Feature |
Specification |
| Tank Capacity |
12-20 m³ (customizable) |
| Tank Material |
Carbon steel with internal epoxy coating |
| Tank Type |
Cylindrical or rectangular, with internal baffles for fluid stability |
| Agitator |
Diesel or hydraulic-driven for consistent slurry mixing |
| Pumping System |
PTO-driven high-pressure hydraulic pump |
| Discharge Valves |
Pneumatic or hydraulic bottom and side valves |
| Safety Features |
Anti-slip ladder, sealed inspection hatch, and emergency vent |
Key Operational Features
- High-pressure slurry delivery for hydraulic fracturing and cementing
- Diesel engine for autonomous field operation
- Manual transmission enables precise torque control on rugged terrain
- Reinforced 8×6 chassis ensures load stability and off-road capability
- Euro 6 emission compliance ensures environmentally responsible operation
Safety Systems
- Emergency stop switches (inside cabin and external)
- Overpressure relief valve on tank and piping
- Hydraulic overload protection
- Anti-overflow control system
- Grounding and bonding system for static protection
- Onboard fire suppression equipment
Applications
- Unconventional oil and gas well stimulation (shale, tight oil)
- Cementing and plugging operations
- Sand, chemical, or slurry injection
- Horizontal and vertical well fracturing
- Oilfield construction and maintenance tasks
Optional Upgrades
- Intelligent remote monitoring and control system
- Data acquisition and reporting module
- Low-temperature winterization kit
- High-temperature desert adaptation kit
- Stainless steel piping for aggressive fluids
- Noise reduction and operator comfort cabin upgrades
- Multi-compartment tank for simultaneous fluid handling
Frequently Asked Questions
What fluids can this truck handle?
Fracturing fluids, cement slurry, sand or chemical slurries.
Is it suitable for extreme climates?
Yes, optional winterization and desert packages are available.
How is slurry pumped into the well?
Via a PTO-driven high-pressure hydraulic pump with adjustable flow rate.
Can the tank be customized?
Yes, both in terms of capacity, material, and compartment layout.
What are the advantages of the 8×6 configuration?
Enhanced load-bearing capacity, stability, and off-road mobility for oilfield operations.
